• Autoclave, Steam Sterilizer

• Suitable for sterilizing instruments, glass wares, and embryoid bodies as a moist heat sterilization machine   using high-pressure steam
• One-touch opens the door for ease of use (Patent Registration)
• High space efficiency as the door opens upwards
• All processes such as heating, pressurization, sterilization, exhaust etc. are executed automatically
  by the initial temperature setting
• A total of 9 sterilization processes can be stored and used
• Current process and progress can be checked through the controller screen
• Verified the temperature and pressure as KS P 6102 standard (Medical High-Pressure Steam Sterilizer)
• Precision control implementation by 121°C ± 0.5°C
• Equipped with low water level alarm, steam emission alarm, over-temperature protection,
  and pressure safety device
• Temperature can be recorded via Recorder (Recorder Type)
• Including 2 Wire Baskets and an exhaust tank










Cat. No. Model 용량 히터 용량 Type
A05-01-005 LVE040 45 L 2 kW Standard
A05-01-010 Recorder
A05-01-015 LVE060 65 L 3 kW Standard
A05-01-020 Recorder
A05-01-025 LVE080 85 L 3 kW Standard
A05-01-030 Recorder
A05-01-225 4 kW Standard
A05-01-230 Recorder
A05-01-035 LVE100 105 L 3 kW Standard
A05-01-040 Recorder
A05-01-235 4 kW Standard
A05-01-240 Recorder
Optional Accessory
Cat. No. Model Descripion
A05-01-110 LVEB040 Wire Basket for LVE040, Ø330×195 mm
A05-01-120 LVEB060 Wire Basket for LVE060, Ø330×285 mm
A05-01-130 LVEB080 Wire Basket for LVE080, Ø430×215 mm
A05-01-140 LVEB100 Wire Basket for LVE100, Ø430×285 mm
A05-01-150 LVEExTank Exhaust Tank
T09-53-270 1052-94 Drain Bucket for LVE040, LVE060
T09-53-276 1053-94 Drain Bucket for LVE080, LVE100
Technical Data
Cat. No. A05-01-005 /
A05-01-010		 A05-01-015 /
A05-01-020		 A05-01-025 /
A05-01-030		 A05-01-225 /
A05-01-230		 A05-01-035 /
A05-01-040		 A05-01-235 /
A05-01-240
Model LVE040 LVE060 LVE080 LVE100
Capacity 45 L 65 L 85 L 105 L
Controller PID Control, Graphic LCD Display
Temperature Range 110 ~ 123℃
Uniformity ± 1.0℃
Pressure Sterilization at 121°C 2.1 bar (Absolute Pressure)
Guage Range 0 ~ 3 bar (Gauge Pressure)
Timer 99hr 59min

Size

 Interior Ø350×h420 mm Ø350×h600 mm Ø450×h460 mm Ø450×h600 mm
Exterior w500×d600×h940 mm w500×d600×h1040 mm w600×d700×h940 mm w600×d700×h1040 mm
Door Open w500×d600×h1395 mm w500×d600×h1495 mm w600×d700×h1490 mm w600×d700×h1590 mm
Material Interior Stainless Steel 304
Exterior Powder Coated Steel
Door Cover ABS
Electrical Voltage/Frequency 220V 50/60Hz
Current 9.0 A 13.6 A 13.6 A 18.2 A 13.6 A 18.2 A

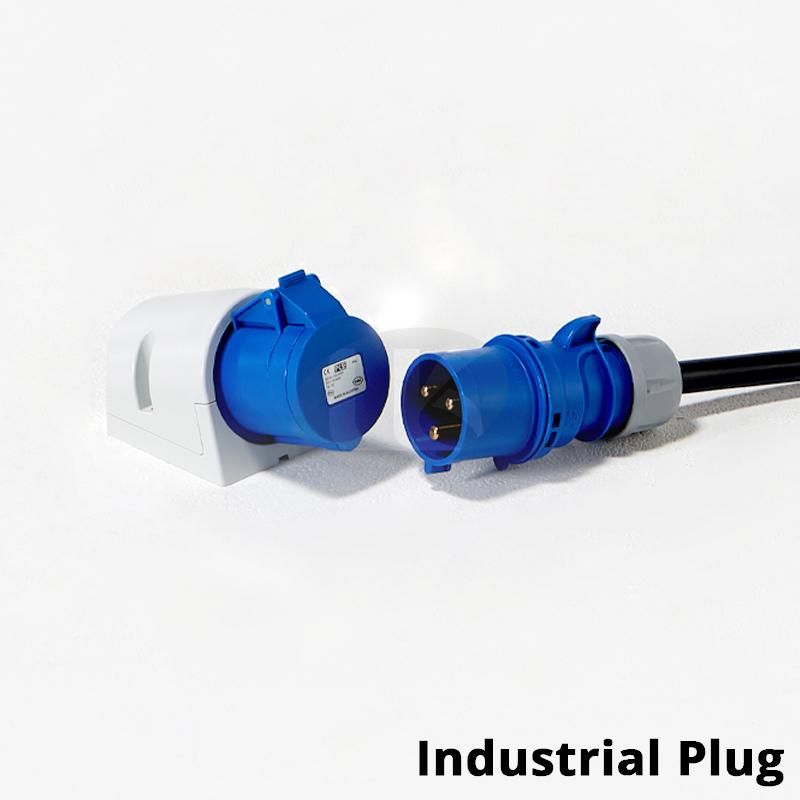

Power Line Standard Plug Standard Plug Industrial Plug Standard Plug Industrial Plug
Safety Over Temp. & Over Pressure Protector, Low Water Alarm
Basket 2ea of Wire Basket Included
