• Magnetic Drive / Vacuum and Pressure Seal

• For Vacuum or Pressure Reaction (Stirring Seal using a magnet)
• Suitable for use with Glass Reactor
• Can be used in conjunction with an Overhead Stirrer
• Outer Magnet and Inner Magnet are REE (Rare Earth Element) Magnet that realizing high torque
  by forming strong magnetism
• Lower vibration and high-speed rotation even in closed space
• Cooling line is included as standard which is convenient to connect to an external cooling device
• The part connecting to the Ground Joint of the glassware can be disassembled using PTFE Nut
• LK Labkorea





Cat.No. Model Specification O-ring
R06-30-254 VPS-24 for ST24/40 2 Type
R06-30-260 VPS-29 for ST29/42
R06-30-268 VPS-34 for ST34/45
R06-30-275 VPS-45 for ST45/50

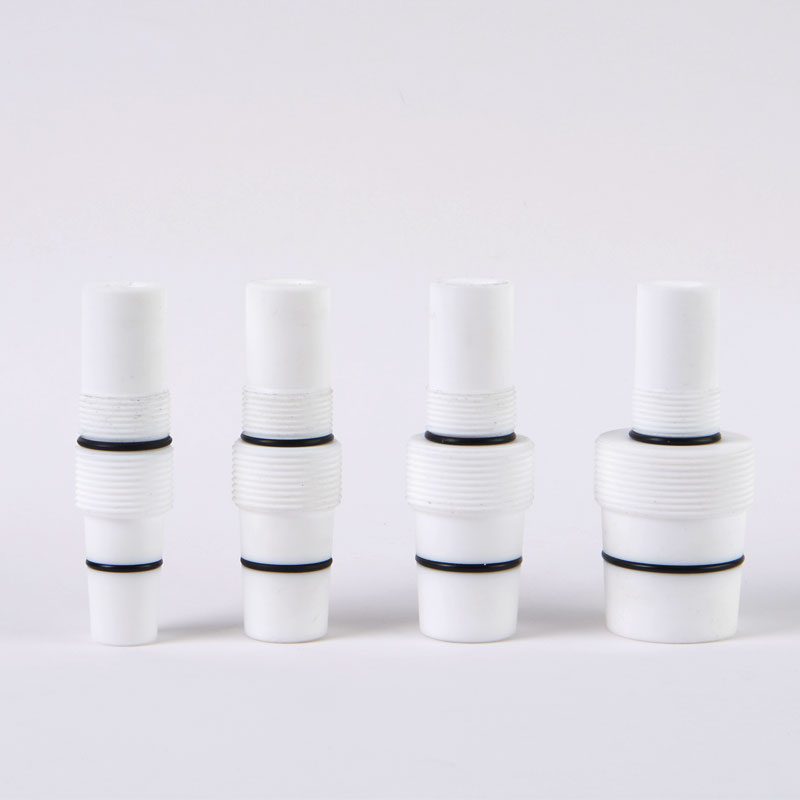

PTFE Stirring Seal Body Only ①
Cat.No. Model Joint Size Applied Model
R06-30-280 24B-VPS 24/40 VPS-24
R06-30-282 29B-VPS 29/42 VPS-29
R06-30-284 34B-VPS 34/45 VPS-34
R06-30-286 45B-VPS 45/50 VPS-45

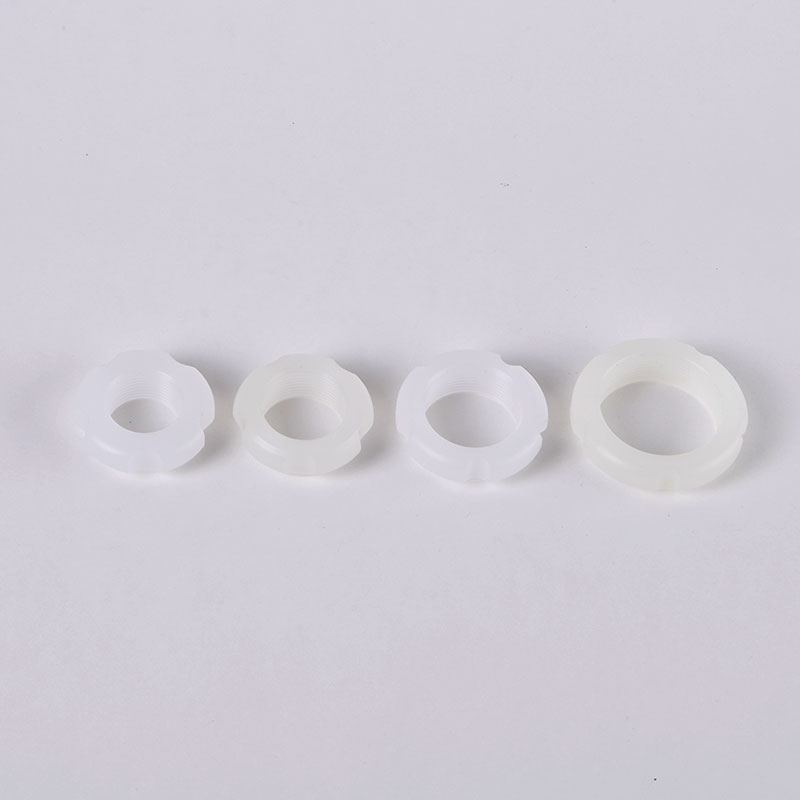

PTFE Stirring Seal Nut Only ②
Cat.No. Model Joint Size Applied Model
R06-30-281 24N-VPS 24/40 VPS-24
R06-30-283 29N-VPS 29/42 VPS-29
R06-30-285 34N-VPS 34/45 VPS-34
R06-30-287 45N-VPS 45/50 VPS-45
Viton O-ring Only ③
Cat.No. Model Applied Model Description
R06-30-296 OP-VPS-24 VPS-24 1 Type
R06-30-297 OP-VPS-29 VPS-29
R06-30-298 OP-VPS-34 VPS-34
R06-30-299 OP-VPS-45 VPS-45
Common Specification
Material Body / Housing STS 316 / Cr-plate
Body / Seal PTFE / Viton
Max. Torque 6 kgf-cm
Driving Pressure 1×10-4 mmHg to 5 kg/cm2
Temp. (with Cooling) 70℃ after Cooling / Max 300℃
Shaft Size Ø8 mm (Impeller Shaft)
