- Digital Hotplate Stirrer
• Digital Display : Set Temperature, Actual Temperature, Stirring Speed
• Auto-tuning Function and Temperature Calibration
• Maintaining Set Speed by Feedback Control
• Timer Installed (up to 99hr 59min)
• Great Heat and Chemical Resisting with Ceramic Coated Heating Plate
• By External Sensor, Supporting Precision Control of Sample Temperature Directly
• Main Body, Temperature Sensor and Support Kit Included Delivery
• LK Labkorea
| Cat. No | Model | Capacity | Plate Size |
|---|---|---|---|
| H03-03-172 | PD1150 | 2 L | 150×150 mm |
| H03-03-173 | PD1180 | 5 L | 180×180 mm |
| H03-03-174 | PD1300 | 15 L | 300×300 mm |
| H03-03-272 | PD1150P | PD1150 Package | |
| H03-03-273 | PD1180P | PD1180 Package | |
| H03-03-274 | PD1300P | PD1300 Package | |
| Cat. No. | H03-03-172 | H03-03-173 | H03-03-174 | |
|---|---|---|---|---|
| Model | PD1150 | PD1180 | PD1300 | |
| Stirring Quantity (H2O) | 2 L | 5 L | 15 L | |
| Speed Range | 100 ~ 1500 rpm | 100 ~ 1300 rpm | ||
| Temperature Range | Max 380℃ | Max 350℃ | ||
| Heater Power | 480W | 680W | 1400W | |
| Temperature Controller | Digital PID Auto-turning (Timer : 99hr 59 min) | |||
| Stirring Controller | Digital Display Feedback Control | |||
| Material Heating Plate | Ceramic Coated Aluminum | |||
| Size | Plate | w150×d150 mm | w180×d180 mm | w300×d300 mm |
| Exterior | w160×d280×h107 mm | w200×d310×h107 mm | w310×d430×h120 mm | |
| Power | 1 Phase, 220 Vac, 50/60 Hz | |||
| Cat. No | Model | Description |
|---|---|---|

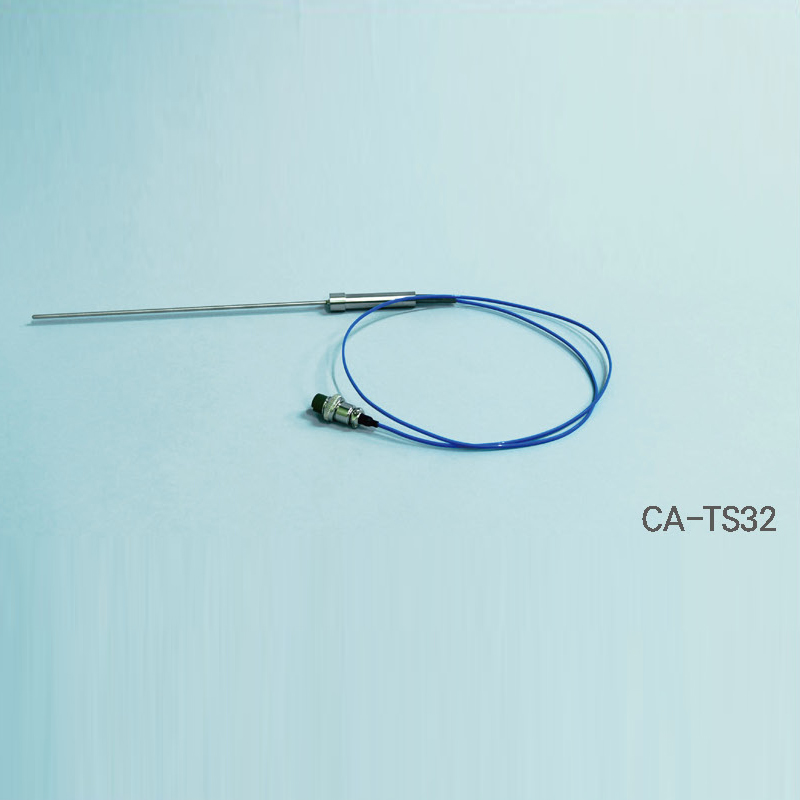

| H03-03-201 | CA-TS32 | Temp. Sensor, Ø3.2×L230 mm |
| H03-03-203 | CA-TS32TF | Teflon Coated Temp. Sensor |

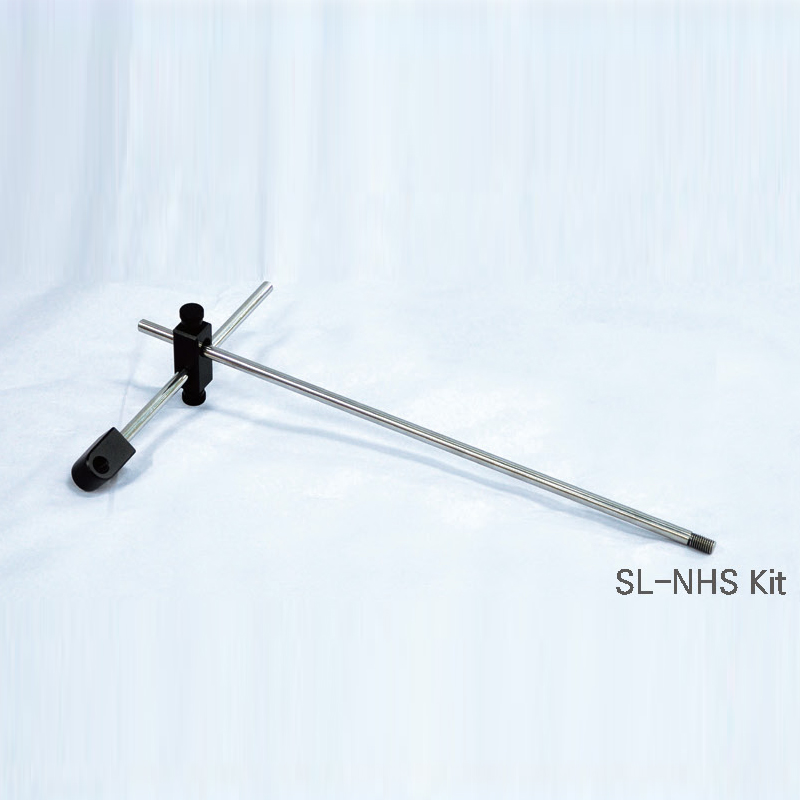

| H03-03-205 | SL-HS Kit | Support Kit |
- ● Support Kit : Support Rod, Boss Head Clamp, Holding Rod
